Control Module - 2 Speed Models

Name: Parts King
Address: 3727 Charlotte Ave., Nashville, TN, 37209, US
Telephone: 800-462-4814

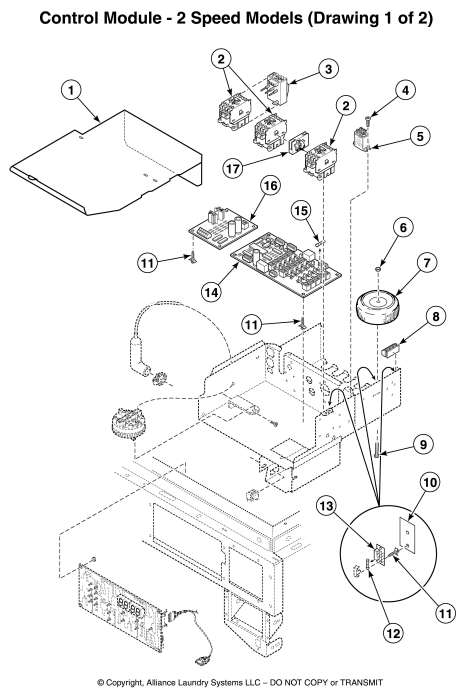

Control Module - 2 Speed Models (Drawing 1 of 2)

REF	PART NO.	DESCRIPTION
1	F0637177-00	Module Box Cover
2	F330176P	Contactor
3	F0330192-00P	Overload Contactor - DC20, DC25, DC30, HC20, HC25, HC30, SC20, SC25 and SC30 models
3	F330403P	Overload Contactor - DC40, HC40 and SC40 models
3	F0330191-00P	Overload Contactor - HC50 and SC50 models
4	F430917	Screw
5	M412534	Relay
6	F430215	Nut
7	F0360170-00P	Transformer
8	F140768	Terminal
9	F430996	Screw
10	F231356	Fuse Decal - 1 Amp
10	F231351	Fuse Decal - 1.6 Amp
10	F231355	Fuse Decal - 2 Amp
10	F231350	Fuse Decal - 3 Amp
10	F231352	Fuse Decal - 3.15 Amp
10	F231354	Fuse Decal - 3.15 Amp; Pump drain option models
11	F180506	Standoff
12	F350110	Fuse - 1 Amp
12	F350145	Fuse - 1.6 Amp
12	F350142	Fuse - 2 Amp
12	F350115	Fuse - 3 Amp
12	F350141	Fuse - 3.15 Amp
12	F350146	Fuse - 5 Amp
13	F0350312-10	Fuse Holder
14	F370434P	Output Relay CCA - Basic
14	F370433P	Output Relay CCA - Full variable; Heat
15	F350142	Fuse - 2 Amp
16	F370432P	Door Lock Control CCA
17	F330186P	Interlock Contactor
